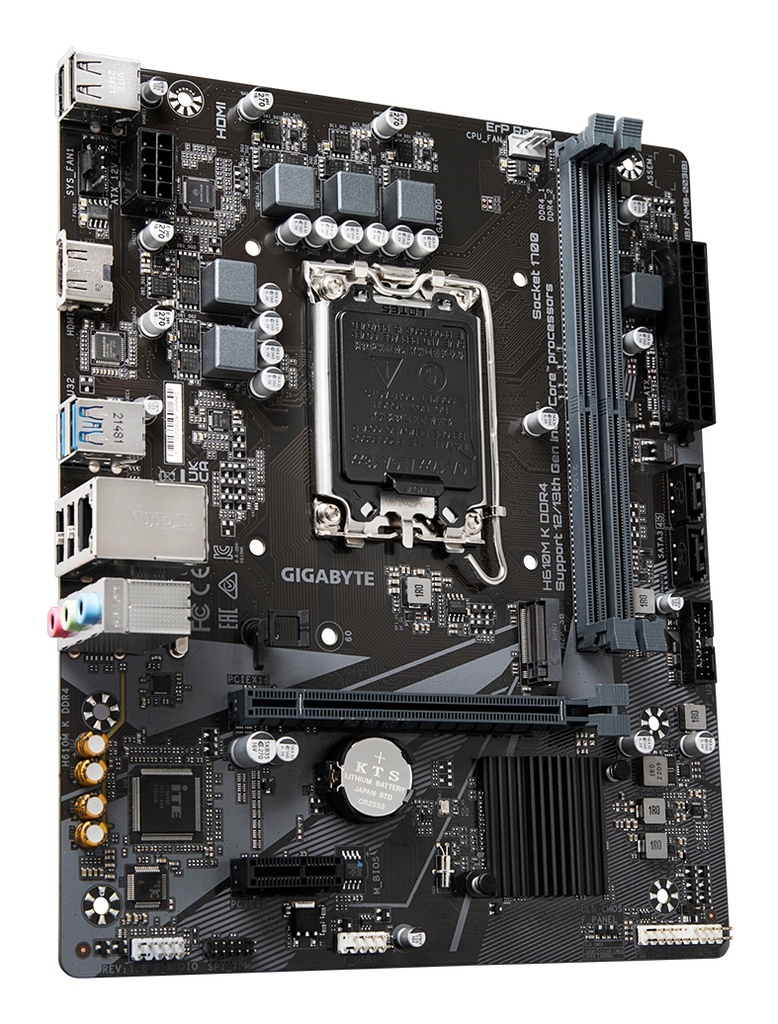

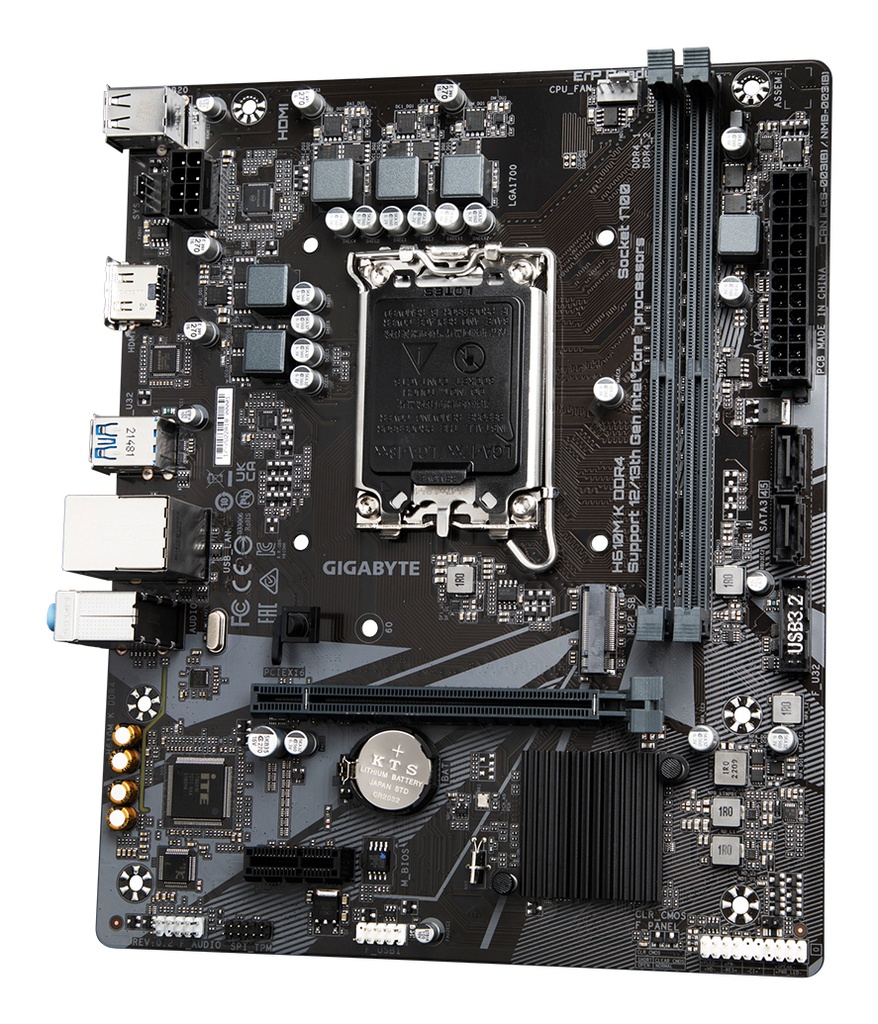

MB GIGABYTE S1700 H610M K DDR4 BOX M-ATX

Especificaciones

• Procesador
• L3 cache varies with CPU
• Please refer to CPU Support List for more information.
• Chipset
• Intel® H610 Express Chipset
• Memoria
• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer Memory Support List for more information.)
• Gráfica Integrada
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version and HDCP 2.3.
• Support native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on CPU support.)
• Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
• Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Zócalos de Expansión
• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Interfaz de almacenamiento
• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
• 2 x SATA 6Gb/s connectors
• USB
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Conectores Internos E/S
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x Clear CMOS jumper
• Panel E/S Trasero
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• Controlador E/S
• iTE® I/O Controller Chip
• Monitorización Hardware
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Otras Características
• Support for APP Center
• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Smart Backup
• System Information Viewer
