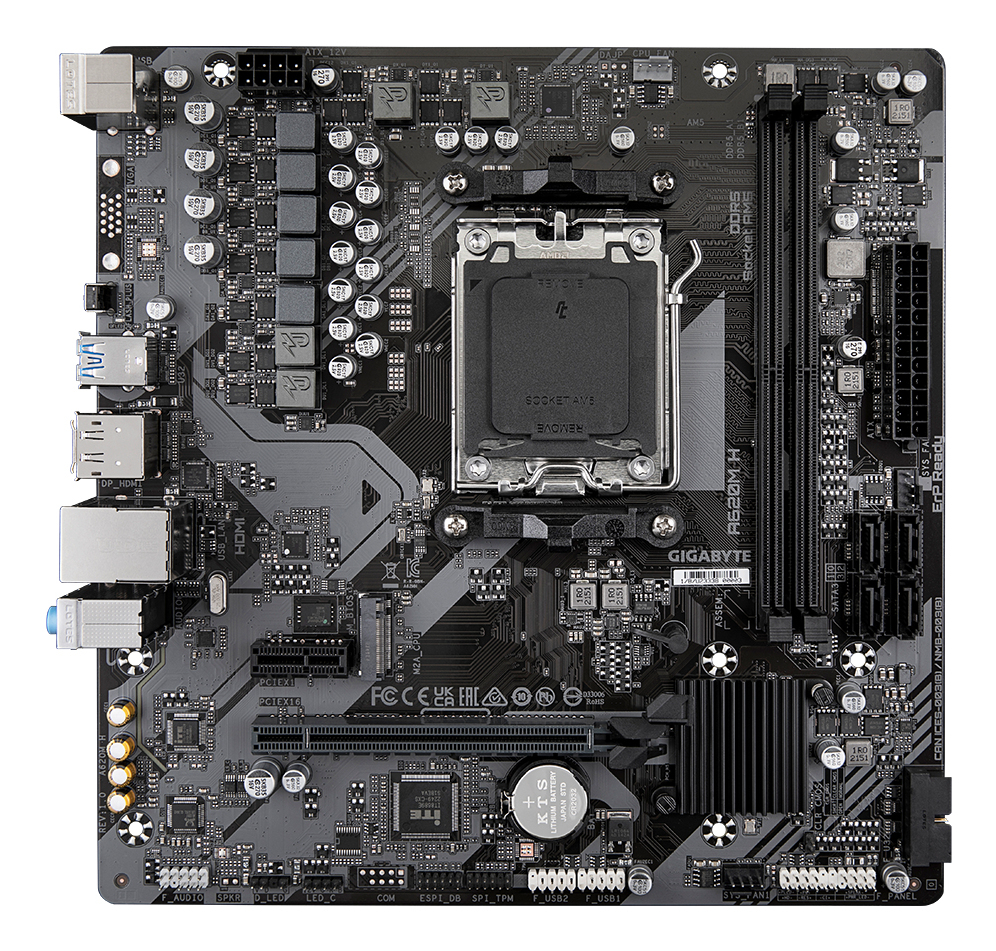

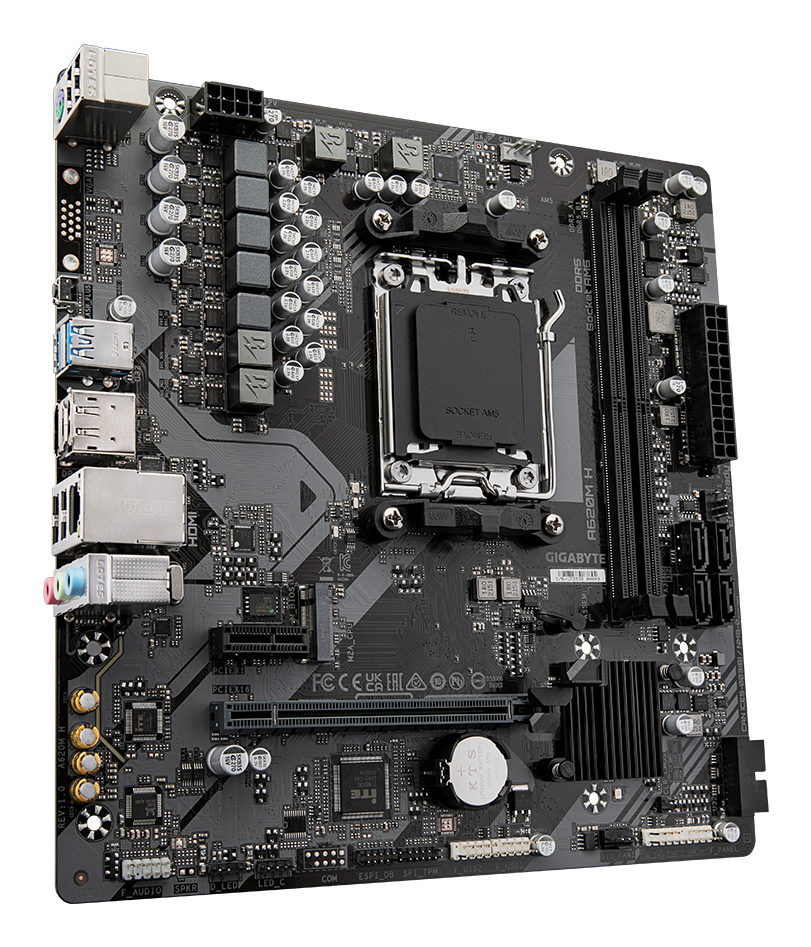

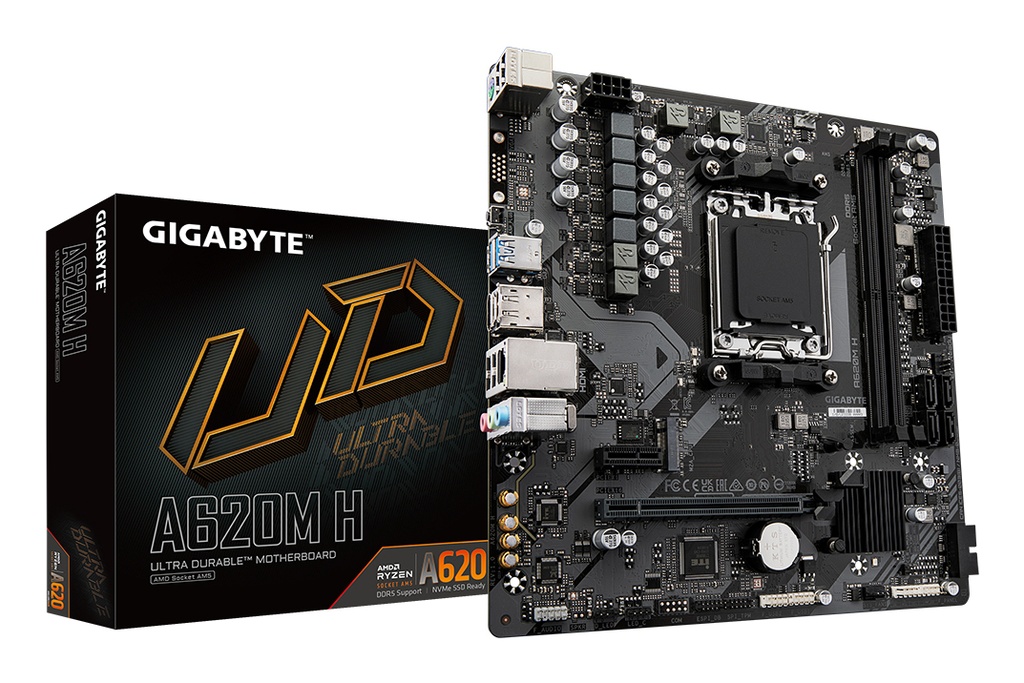

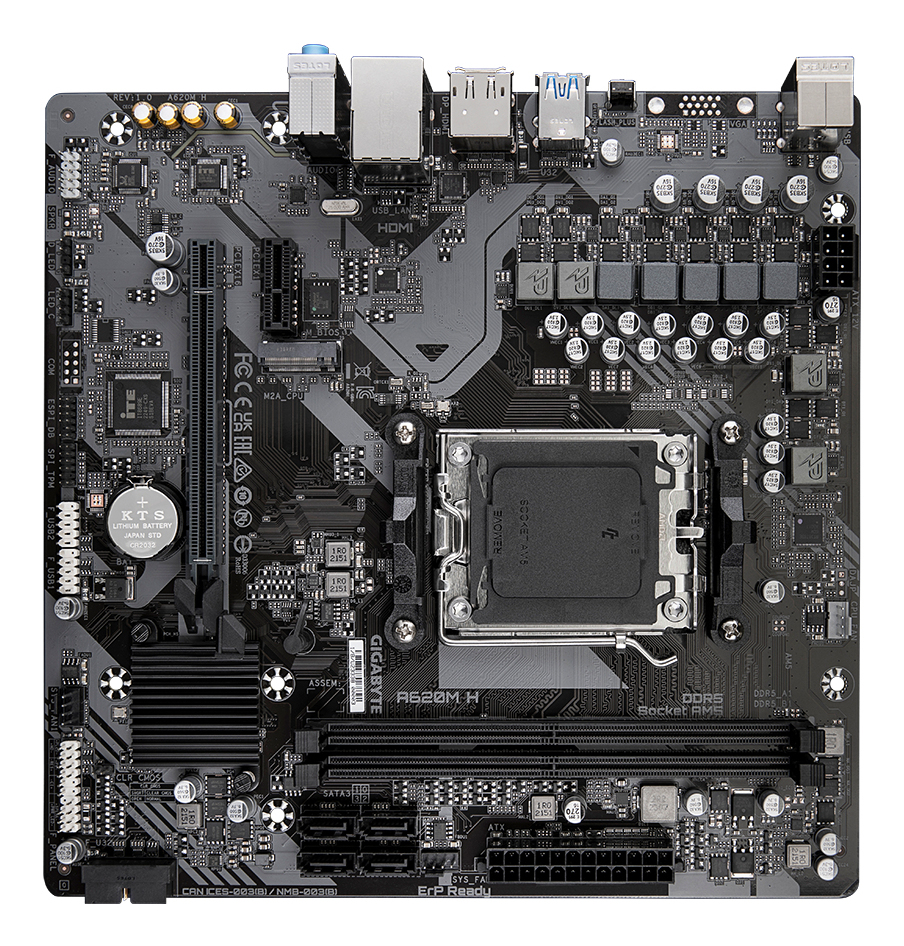

MB GIGABYTE AM5 A620M H DDR5 BOX M-ATX

Especificaciones

• A620M H 1.2
• Procesador
• (Please refer CPU Support List for more information.)
• Chipset
• AMD A620
• Memoria
• Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
• (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to Memory Support List for more information.)
• Gráfica Integrada
• Integrated Graphics Processor:
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• Support for DisplayPort 1.4 version.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version and HDCP 2.3.
• Support for native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on CPU support.)
• Support for up to 3 displays at the same time
• Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Zócalos de Expansión
• 1 x PCI Express x16 slot, integrated in the CPU:
• AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Interfaz de almacenamiento
• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
• AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
• CPU:
• 2 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB 2.0/1.1 port on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
• Conectores Internos E/S
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x Clear CMOS jumper
• Panel E/S Trasero
• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x Q-Flash Plus button
• 2 x USB 3.2 Gen 1 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x RJ-45 port
• 3 x audio jacks
• Controlador E/S
• iTE® I/O Controller Chip
• Monitorización Hardware
• Voltage detection
