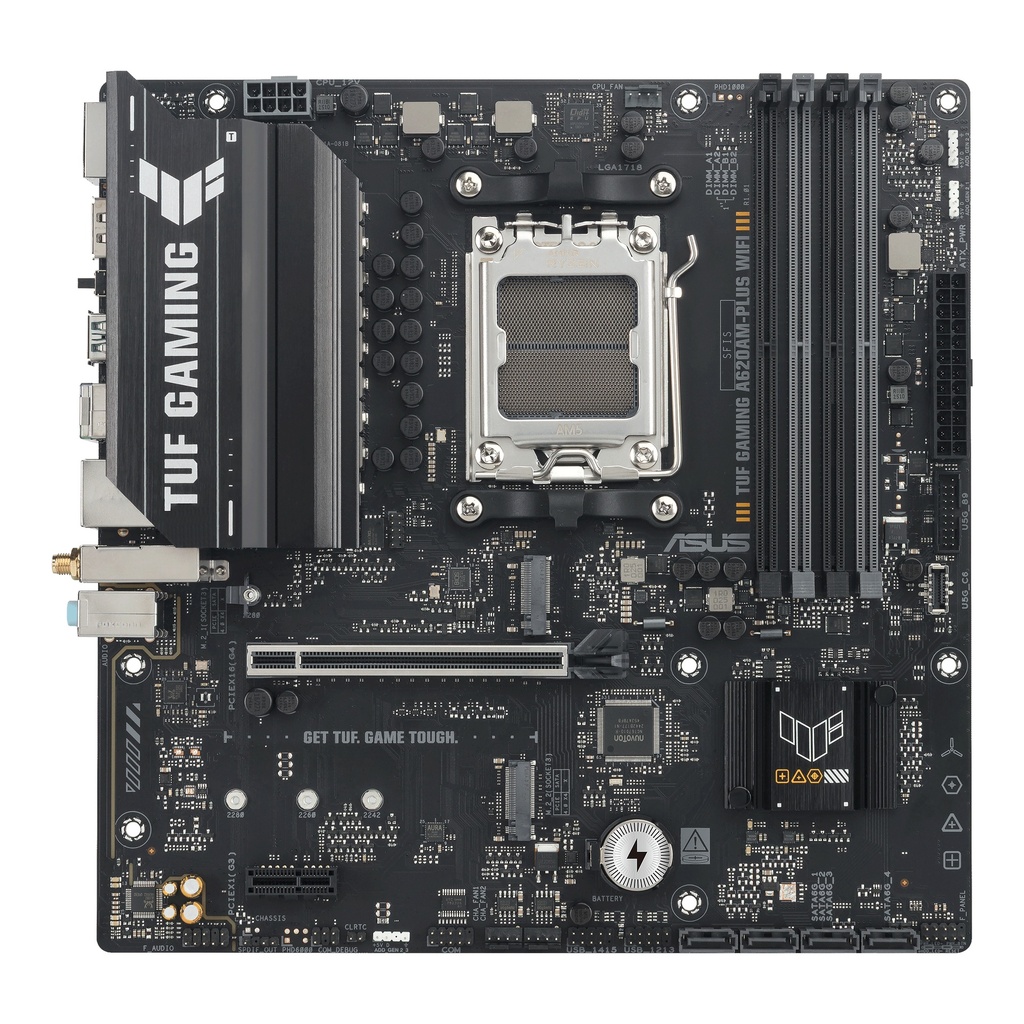

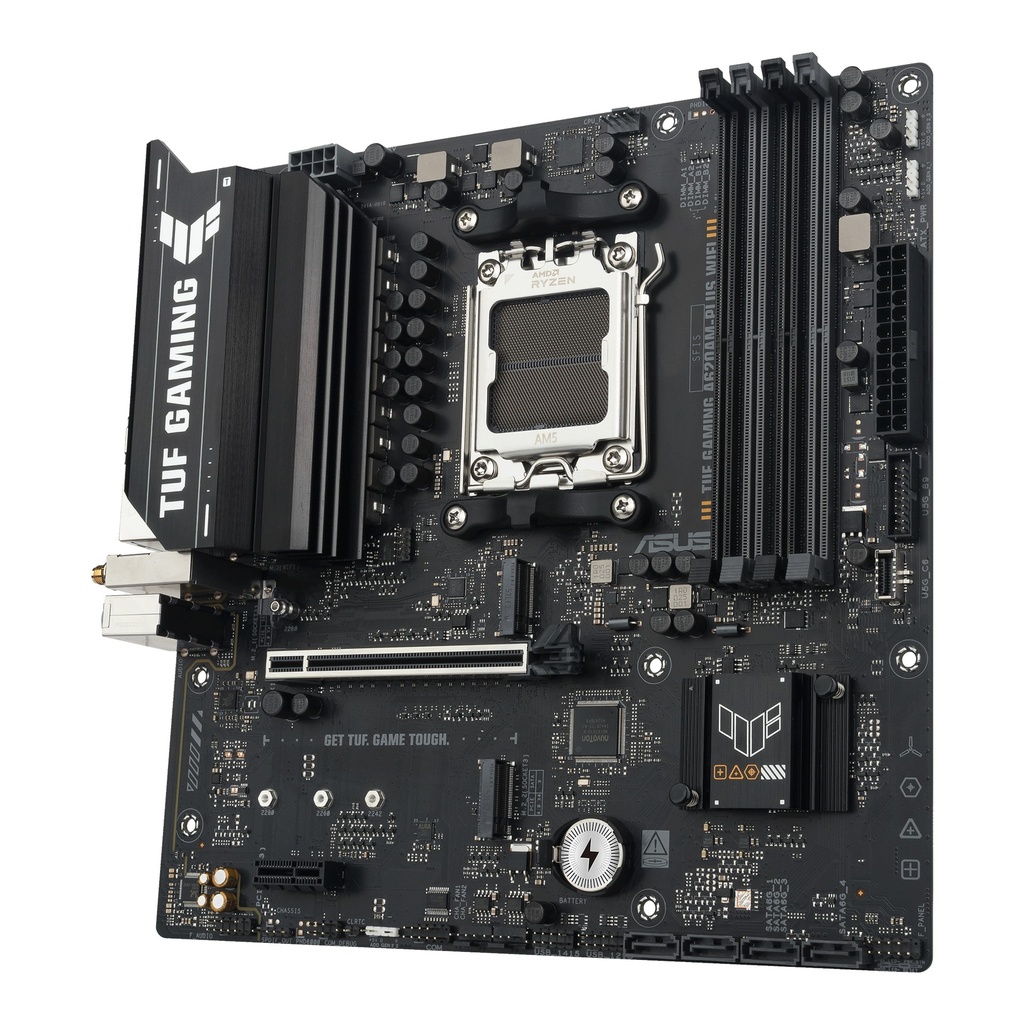

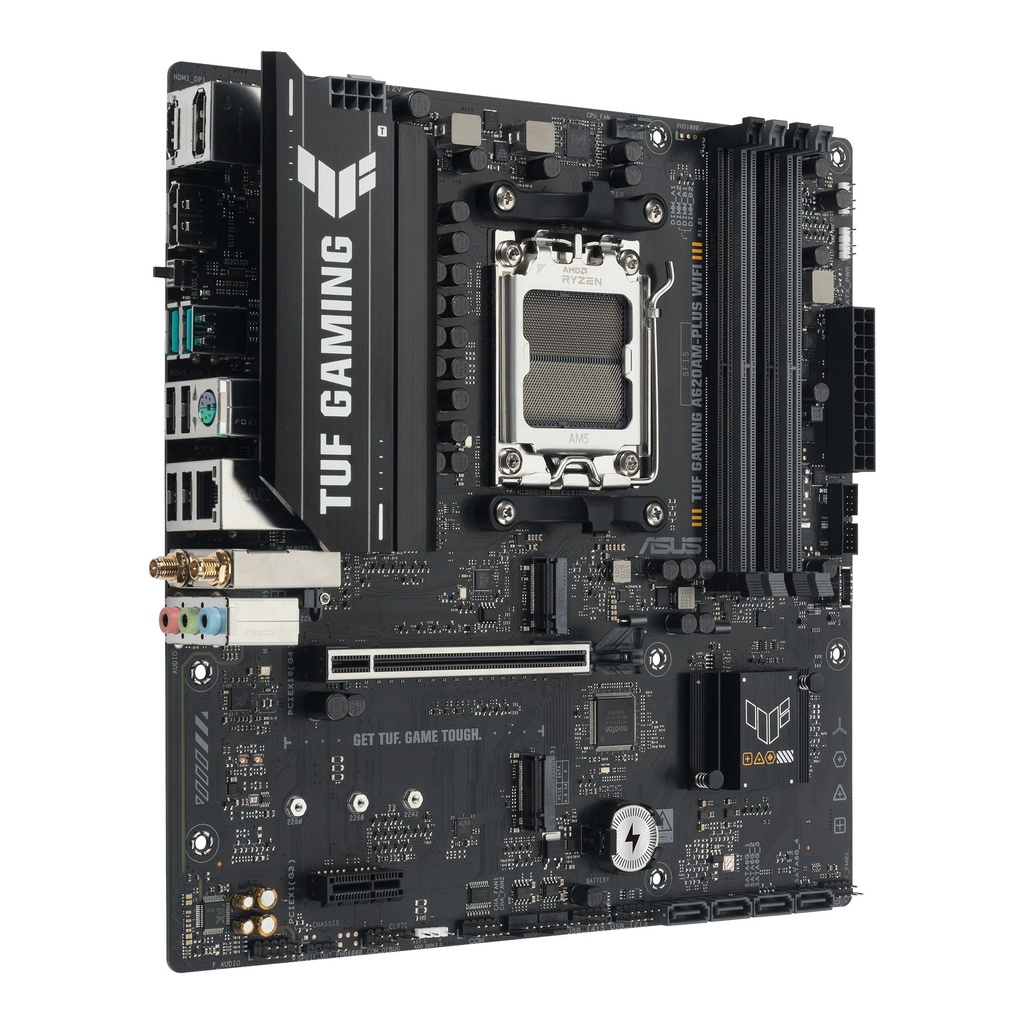

MB ASUS AM5 TUF GAMING A620AM-PLUS WIFI DDR5 BOX

Especificaciones

• Model
• TUF GAMING A620AM-PLUS WIFI
• News & Updates
• Please visit our GLOBAL website to check and download the latest updates.
• CPU
• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset
• AMD A620A Chipset
• Memory
• 4 x DIMM slots, max. 256GB, DDR5 ECC and Non-ECC Un-buffered DIMM
• Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
• 2 x DisplayPort
• 1 x HDMI™ port
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• Supports max. 8K@30Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD A620A Chipset
• 1 x PCIe 3.0 x1 slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• Specifications vary by CPU types.
• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
• Storage
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
• AMD A620A Chipset
• 4 x SATA 6Gb/s ports
• Specifications vary by CPU types.
• RAID Support
• AMD RAIDXpert2 Technology
• Specifications vary by CPU types.
• Ethernet
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wireless & Bluetooth
• Wi-Fi 6
• 1x1 Wi-Fi 6 (802.11ax)
• Supports 2.4/5GHz frequency band
• Bluetooth® v5.3
• The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications.
• USB
• Rear USB (Total 6 ports)
• 2 x USB 10Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 5Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
• 2 x USB 10Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
