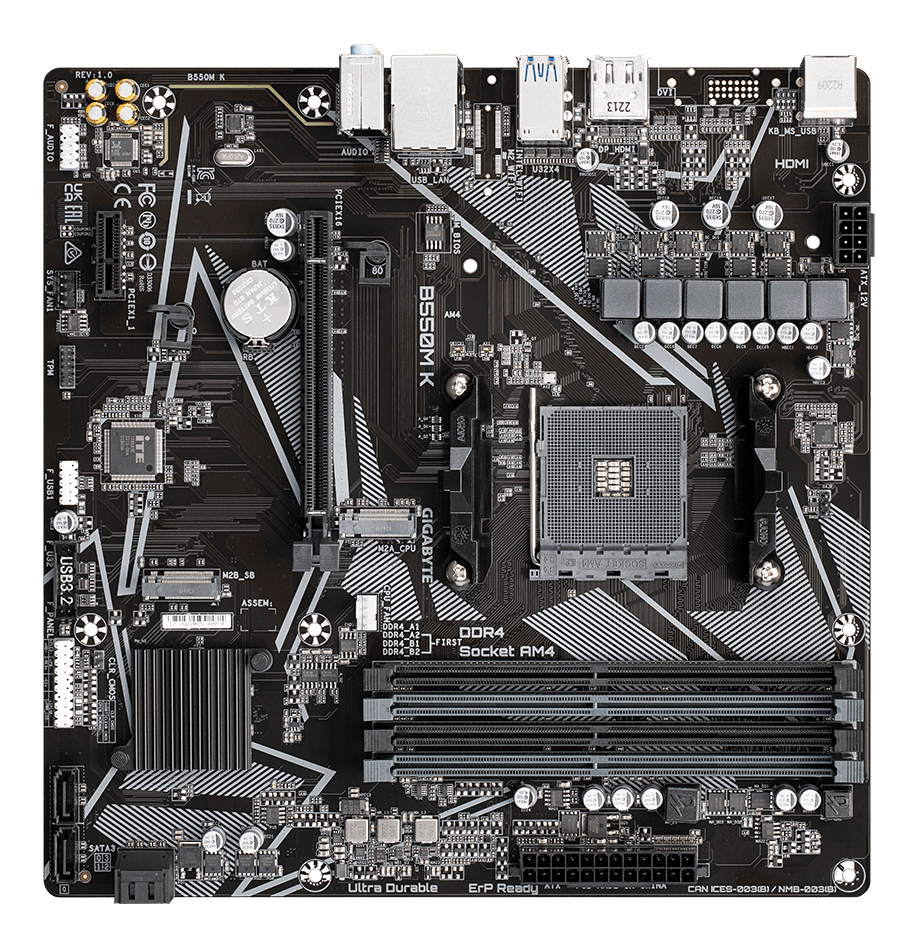

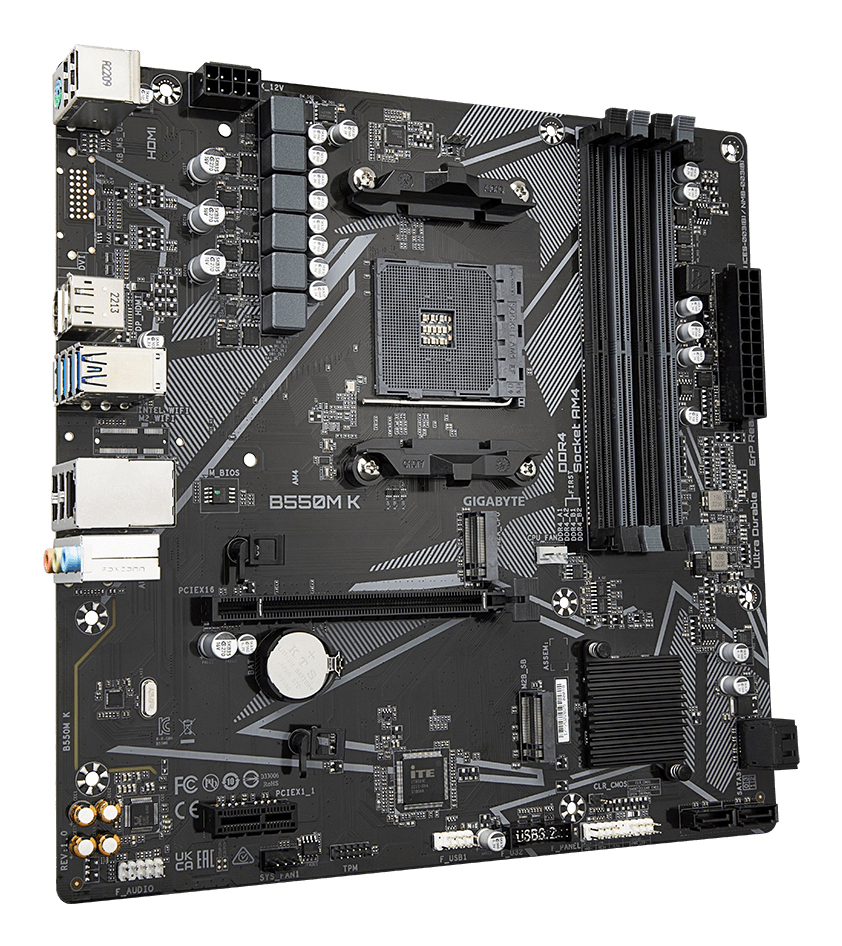

MB GIGABYTE AM4 B550M K DDR4 BOX M-ATX

Especificaciones

• CPU
• (Please refer CPU Support List for more information.)
• Chipset
• AMD B550
• Memory
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• ECC memory (ECC mode) support varies by CPU
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer Memory Support List for more information.)
• Onboard Graphics
• Integrated Graphics Processor:
• 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
• Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Maximum shared memory of 16 GB
• Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
• Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots
• 1 x PCI Express x16 slot, integrated in the CPU:
• AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
• AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
• 1 x PCI Express x1 slot, integrated in the Chipset:
• Supporting PCIe 3.0 x1 mode
• Storage Interface
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
• AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
• Supporting PCIe 3.0 x2 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset:
• Support for RAID 0, RAID 1, and RAID 10
• USB
• CPU:
• 4 x USB 3.2 Gen 1 ports on the back panel
• Chipset:
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper
• Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
• 1 x DisplayPort
• 1 x HDMI port
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning
• Fan speed control
• Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 1 x 128 Mbit flash
