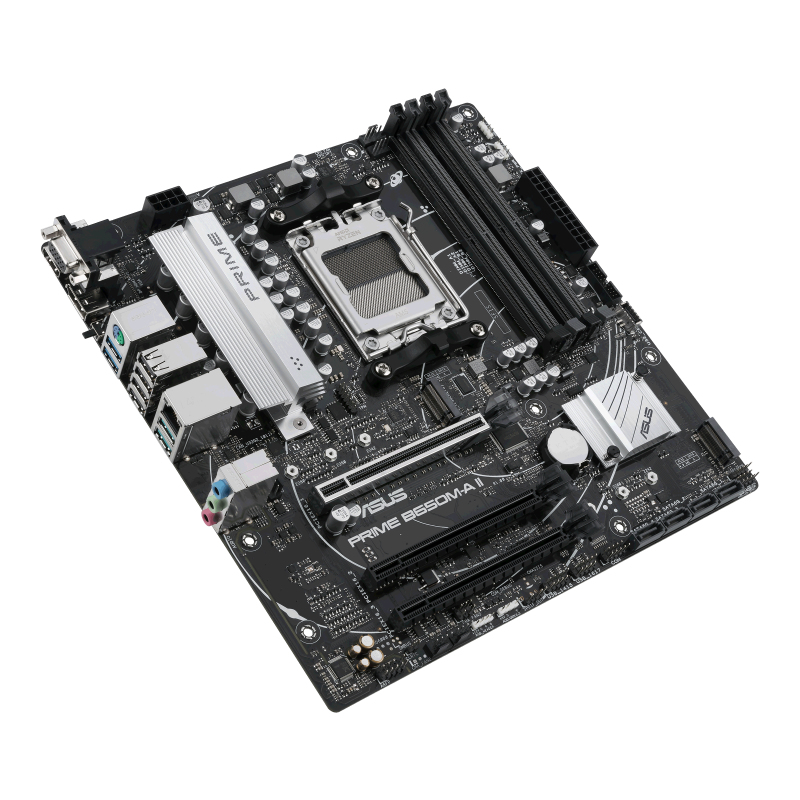

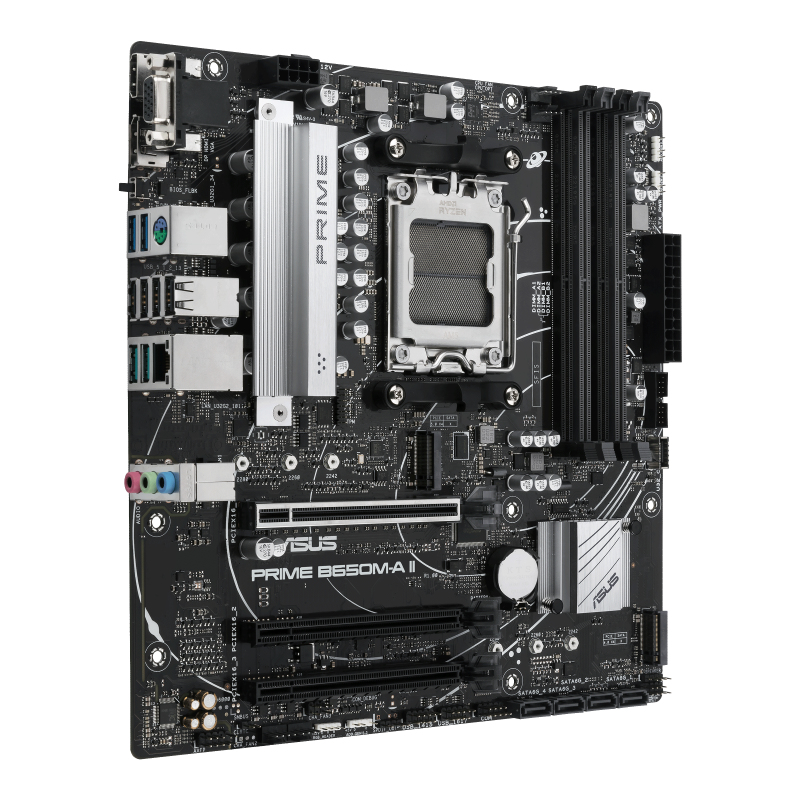

MB ASUS AM5 PRIME B650M-A II DDR5 BOX M-ATX

Especificaciones

• Model
• PRIME B650M-A II
• CPU
• AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors
• Refer to www.asus.com for CPU support list.
• Chipset
• AMD B650 Chipset
• Memory
• 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
• ECC and Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
• Graphics
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI® port
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI® 2.1.
• Expansion Slots
• AMD Ryzen™ 7000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• 2 x PCIe 4.0 x16 slots (support x1 mode)
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• Specifications vary by CPU types.
• Storage
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
• Ethernet
• 1 x Realtek 2.5Gb Ethernet
• USB
• Rear USB (Total 8 ports)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
