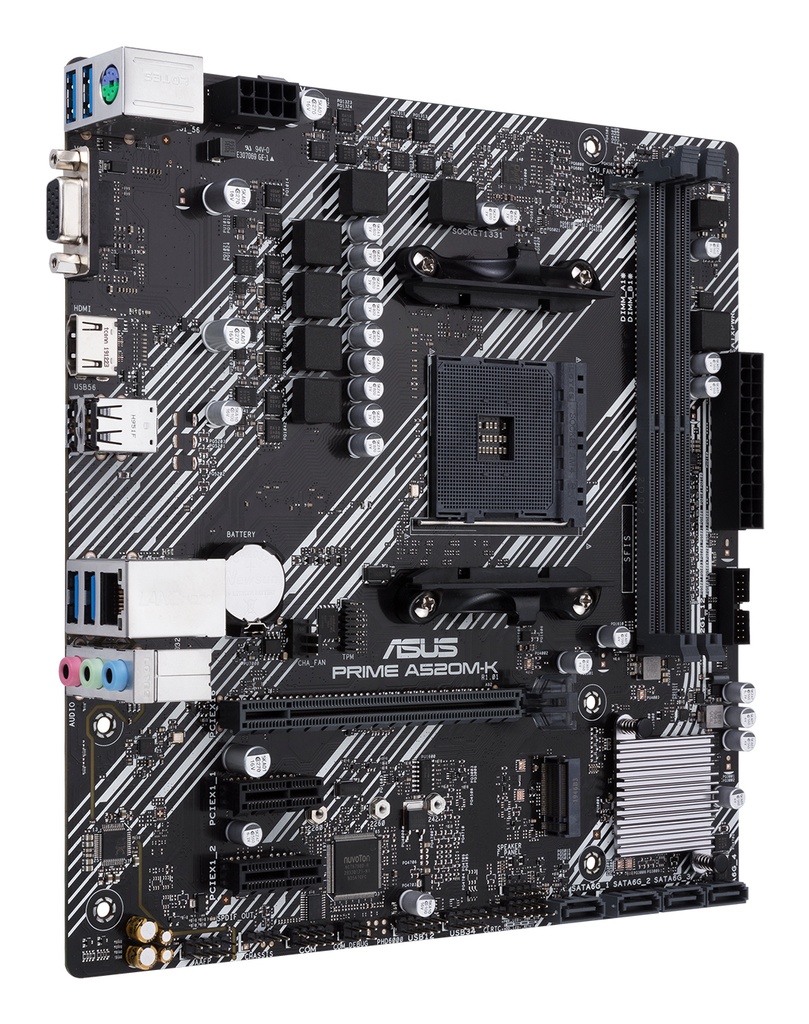

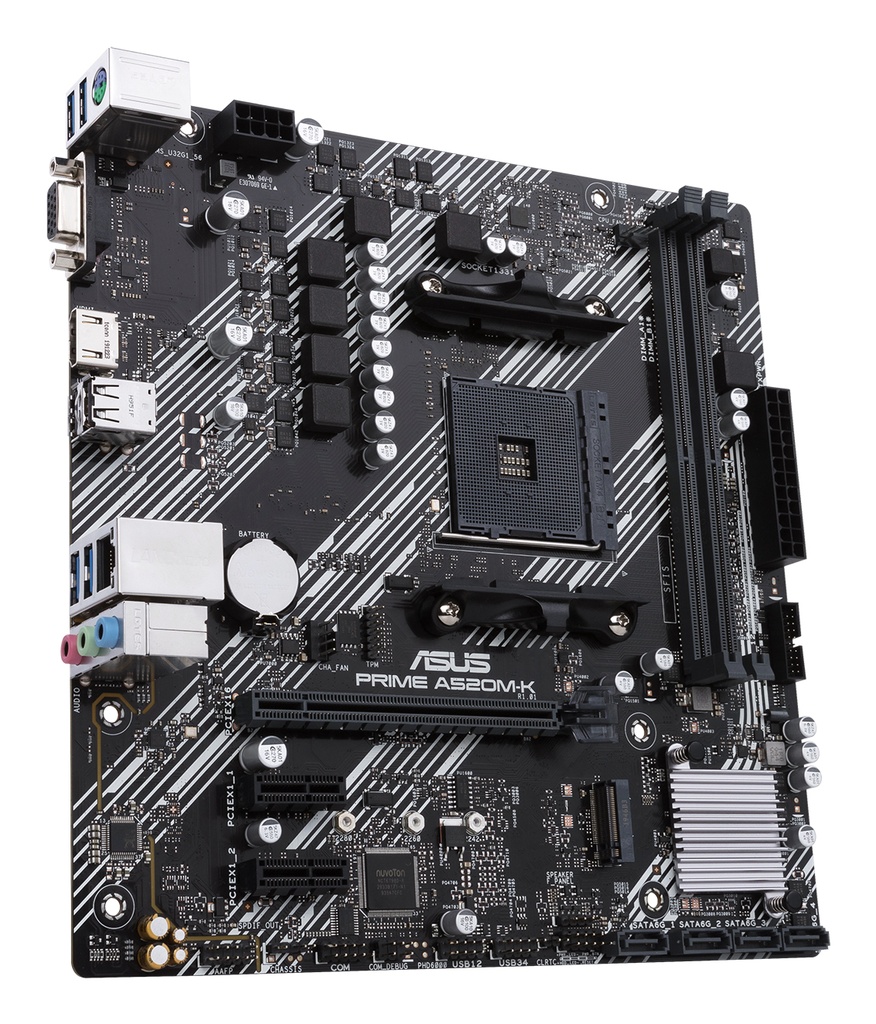

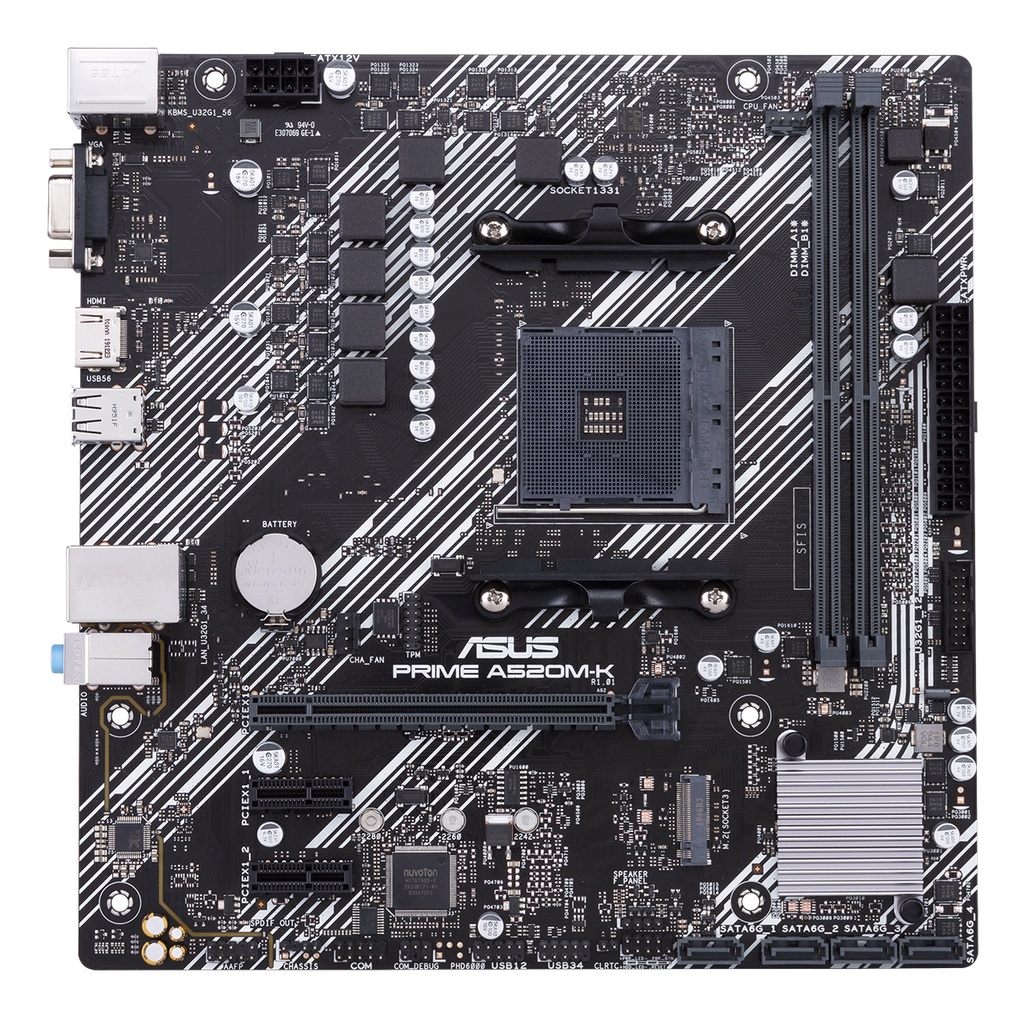

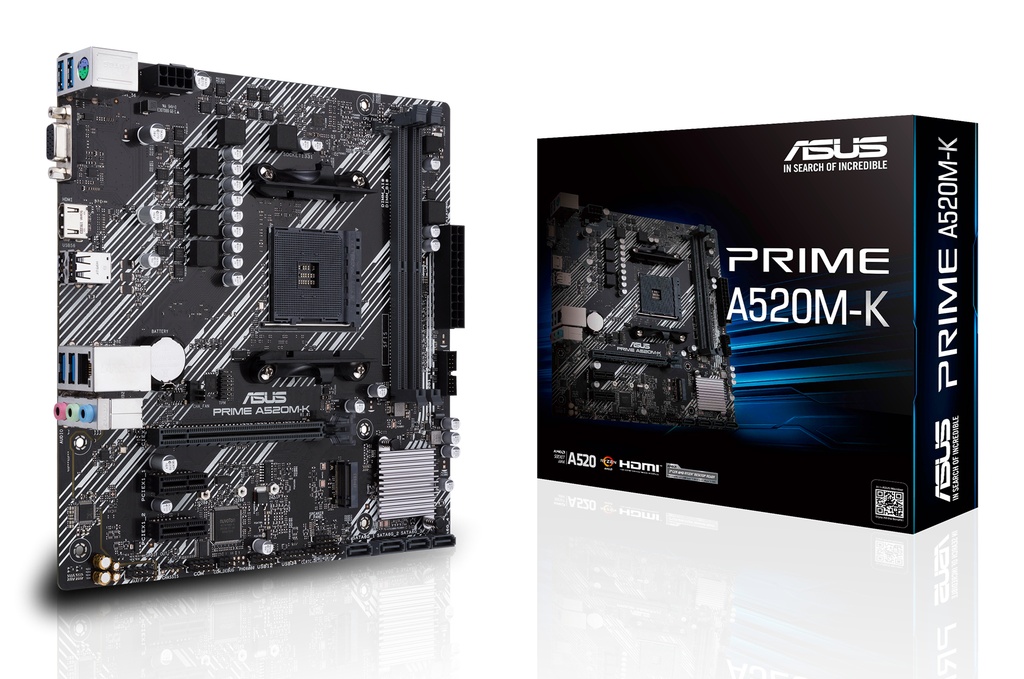

MB ASUS AM4 PRIME A520M-K DDR4 BOX M-ATX

Especificaciones

• Build in AMD AM4 Socket Processors
• Refer to www.asus.com for CPU support list
• Chipset
• AMD A520
• Memoria
• 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.
• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• The maximum memory frequency supported varies by processor.
• Gráficos
• 1 x D-Sub
• 1 x HDMI 2.1(4K@60HZ)
• Slots de Expansión
• 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
• 1 x PCIe 3.0 x16 (x16 mode)
• AMD A520 Chipset
• 2 x PCIe 3.0 x1
• Almacenamiento
• Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
• 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
• AMD A520 Chipset :
• 4 x SATA 6Gb/s port(s),
• Support Raid 0, 1, 10
• LAN
• Realtek RTL8111H 1Gb Ethernet
• ASUS LANGuard
• Audio
• Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
• Audio Feature :
• Audio Shielding
• Dedicated audio PCB layers
• Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• Puertos USB
• Rear USB Port ( Total 6 )
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
• 2 x USB 2.0 port(s)(2 x Type-A)
• Front USB Port ( Total 6 )
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4 x USB 2.0 port(s)(4 x Type-A)
• Software Features
• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• Performance and Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert
• EZ update
• ASUS CPU-Z
• AI Charger
• DAEMON Tools
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS Special Features
• ASUS 5X PROTECTION III
• ASUS DIGI+ VRM
• ASUS LANGuard
• ASUS Overvoltage Protection
• ASUS SafeSlot Core
• ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• ASUS Q-DIMM
• ASUS Q-Slot
• ASUS Thermal Solution
• Aluminum heatsink design
• Puertos I/O Traseros
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.2 Gen 1 (blue) Type-A
